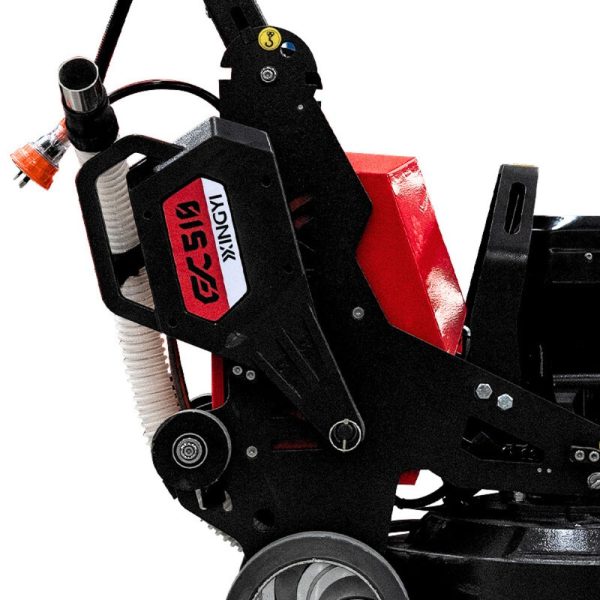

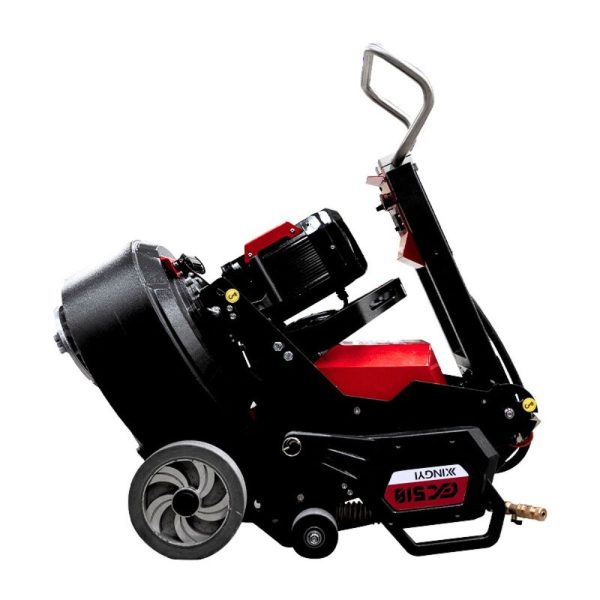

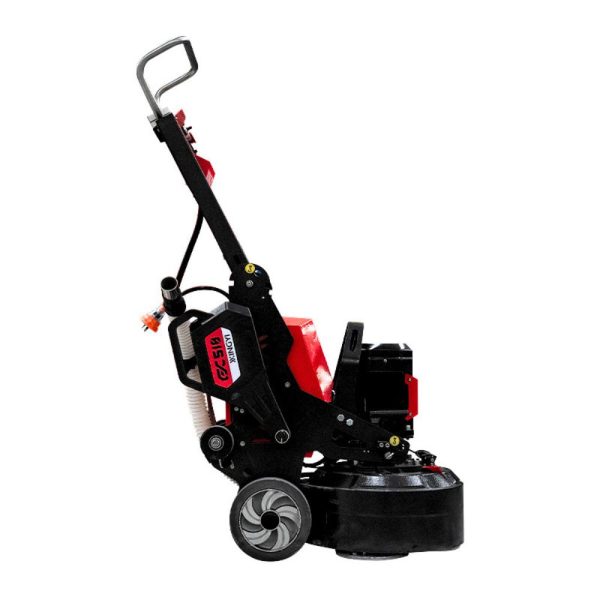

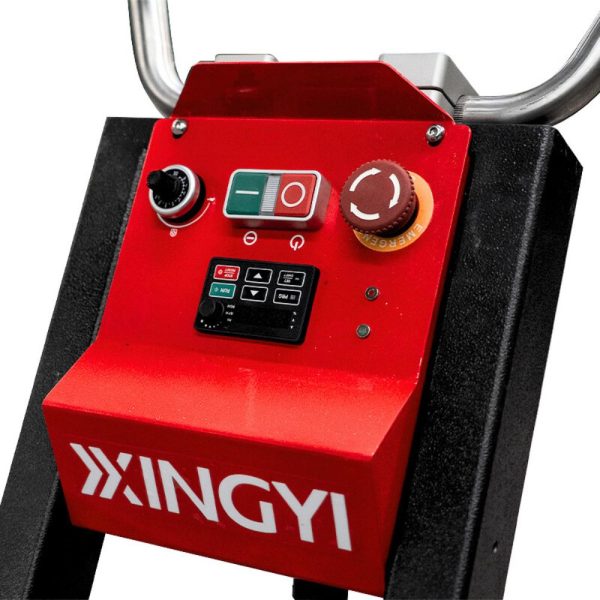

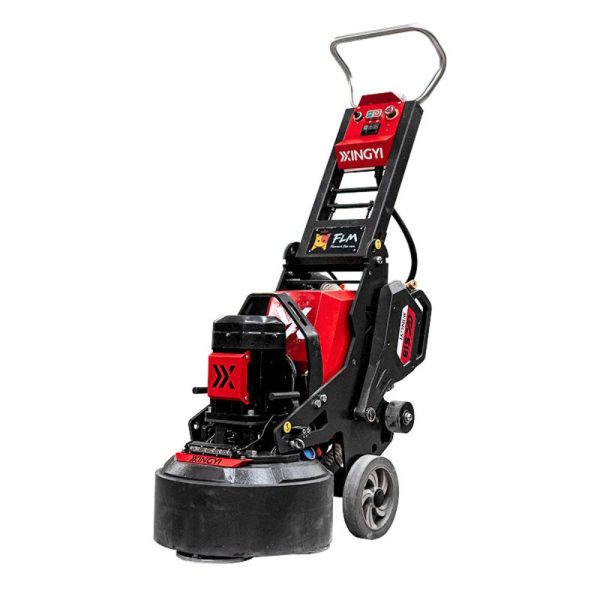

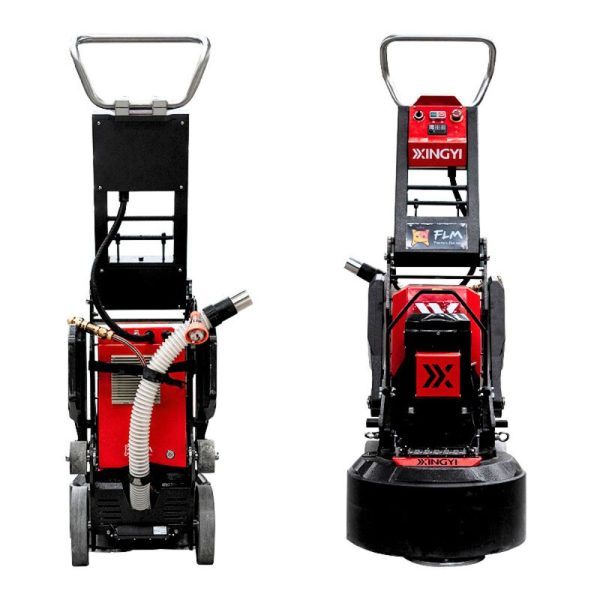

Xingyi GX-510 Planetary Floor Grinder

Description

Single Phase 15A • 4kW Permanent Magnet Motor • Heavy-Duty Planetary Grinder

The Xingyi GX-510 planetary floor grinder is a next-generation single-phase concrete grinder designed for professional contractors working in residential, commercial, and renovation environments. Built to deliver industrial grinding performance on single phase, 15A power, the GX-510 combines high torque, heavy grinding pressure, and a compact, transport-friendly design.

Co-developed with FLM/Floormart for real jobsite conditions, the GX-510 is engineered for uneven surfaces, coatings removal, surface preparation, and concrete polishing applications where power supply and access may be limited.

Available soon at Auskut Diamond Tools. Enquire now for release updates and pricing.

Motor & Electrical

• Rated power: 4kW / 5.5HP
• Phase: Single phase
• Voltage: 220V
• Rated current: 15A

Grinding Head

• Grinding width: 490mm
• Number of grinding discs: 3
• Disc diameter: 220mm
• Disc speed range: 350 – 1500 RPM
• Maximum grinding pressure: 147kg

Machine Dimensions

• Length: 1096mm
• Width: 500mm
• Height: 1597mm
• Machine weight: 256kg
• Optional additional weight: +11kg

Transmission

• Operation type: Walk-behind planetary grinder
• Drive system: Heavy-duty gearbox drive
