Description

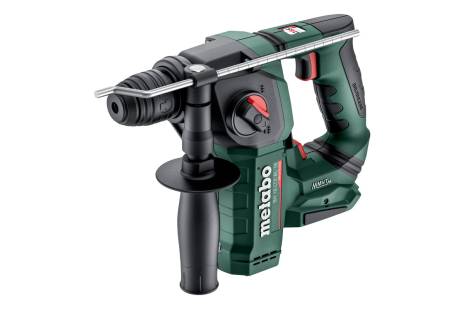

The Metabo BH 18 LTX BL 16 delivers cordless drilling performance in a compact, lightweight design. Its brushless motor and 1.3J hammer mechanism provide drilling capacity up to 16mm in concrete, with separate modes for hammer drilling and conventional drilling.
Metabo VibraTech vibration damping helps improve handling comfort, while speed-control electronics maintain the selected speed under load. An LED illuminates the work area, and electronic motor shutdown provides additional protection if the drill bit jams.
Key Features
- 18V brushless motor with a lightweight 1.6kg body, excluding battery.
- Two operating modes: hammer drilling and rotary drilling.
- SDS-plus tool holder for quick bit changes.
- Metabo VibraTech integrated vibration damping.
- Variable speed control with constant-speed electronics.
- Electronic motor shutdown if the bit jams.
- Integrated LED work light.
- Compatible with Metabo and CAS 18V battery packs.
Technical Specifications
| Model | BH 18 LTX BL 16 |
|---|---|
| Battery Voltage | 18V |
| Tool Holder | SDS-plus |
| Maximum Single-Blow Energy (EPTA) | 1.3J |
| Maximum Impact Rate | 5,250 bpm |
| No-Load Speed | 0–730 rpm |
| Maximum Concrete Drilling Diameter | 16mm |
| Maximum Masonry Core-Bit Diameter | 68mm |
| Maximum Steel Drilling Diameter | 13mm |
| Maximum Softwood Drilling Diameter | 20mm |
| Weight Without Battery | 1.6kg |
Included Accessories
- Side handle.
- Drilling depth guide.
Supplied in a cardboard box without battery pack or charger.
