Description

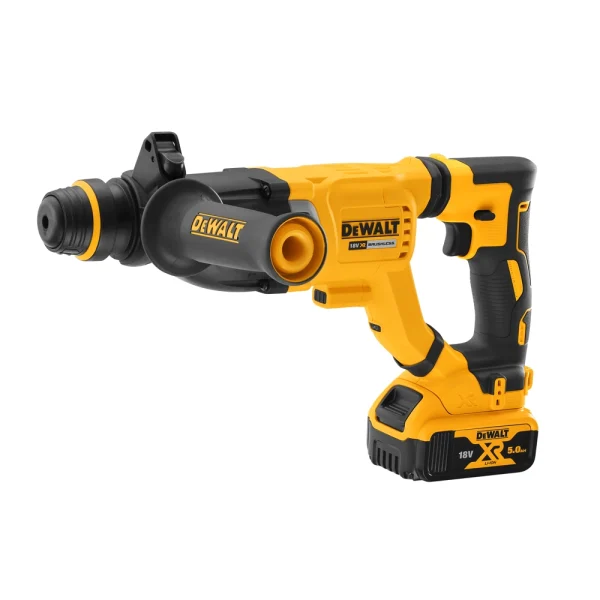

DeWalt DCH263P1-XE 18V Cordless SDS Plus Rotary Hammer (5.0Ah Kit)
A heavy-duty, brushless 18V rotary hammer built for professional drilling, hammer drilling and light chiselling in concrete, masonry, steel, wood and plastics. Active Vibration Control at the handle cuts hand-arm vibration for longer, more comfortable use, and the three-mode selector lets you switch between rotary drilling, hammer drilling and chisel-only operation without changing tools.
Key features:
- Three operating modes: rotary drilling (steel/wood/plastics), rotary hammering (concrete/masonry), and hammering-only for light chiselling
- Active Vibration Control (AVC) at the main handle reduces vibration transferred to hands and arms
- Brushless motor for extended runtime and durability
- Integrated LED worklight with 20-second auto-off delay
- Adjustable depth rod and 360° rotating side handle
- Overload clutch – interrupts drive to the spindle if a bit jams
- Compatible with DeWalt’s DWH205DH dust extraction system (sold separately)
Specifications:
| Voltage | 18V |
| No-load speed | 0-1,165 RPM |
| No-load impact rate | 0-4,300 BPM |
| Single impact energy | 3.0 J |
| Max drilling range – steel/wood/concrete | 13 / 30 / 28mm |
| Max core drilling – soft brick | 65mm |
| Chuck | SDS Plus |
| Collar diameter | 54mm |
| Weight (without battery) | 2.7kg |
| Sound pressure / power (hammerdrill mode) | 93 dB(A) / 101 dB(A) |
| Vibration – drilling into concrete | 10.5 m/s² |
| Vibration – chiselling | 10.2 m/s² |
Included (P1 kit): Cordless rotary hammer, side handle and depth rod, charger, 1 x 5.0Ah Li-Ion battery pack, instruction manual
