Xingyi HTG-460 3-head Concrete Grinder Single Phase 10A

Description

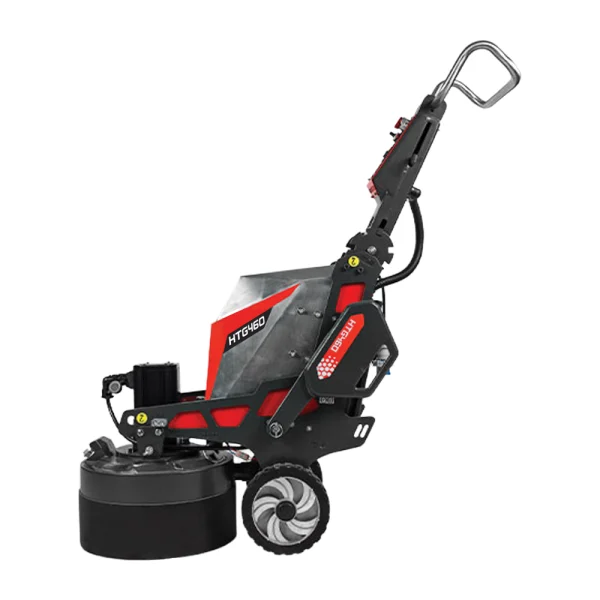

HTG 460 Planetary Concrete Grinder

The HTG 460 is a compact, single-phase planetary concrete grinder designed for indoor use and smaller flooring projects where access and power availability are limited. Manufactured by Xingyi, it combines a space-saving design with reliable grinding performance, making it well suited to residential, commercial, and light industrial applications. With a 456 mm working width and a robust three-head planetary grinding system, the HTG 460 delivers smooth, consistent results while operating on a standard 220 V single-phase power supply with a low current draw of approximately 8.1 A. Its push-operated design, adjustable grinding pressure, and manageable overall size make it easy to transport, set up, and operate on site, even in confined or occupied environments.

Quick Specs:

-Grinding Width: 456 mm

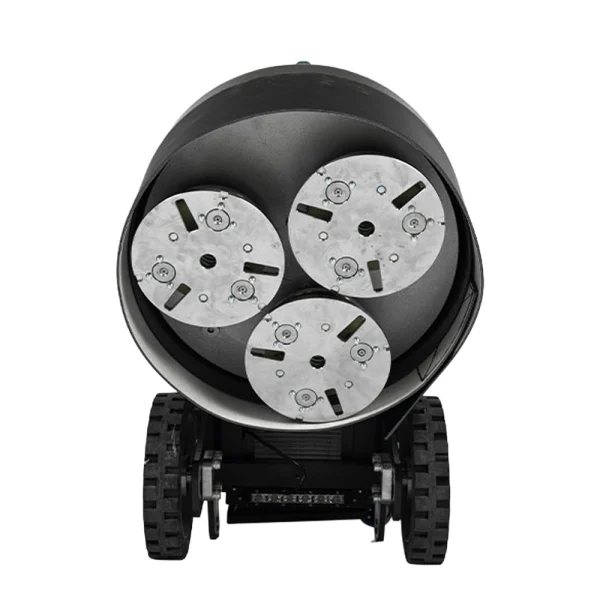

-Grinding System: 3-head planetary (Ø200 mm × 3)
-Motor Power: 2.3 kW / 3 HP, 220 V single-phase
-Current Draw: Approx. 8.1 A
-Working Speed: 350–1260 rpm
-Operation Type: Push grinder
-Machine Weight: 193.5 kg
-Grinding Pressure: Adjustable head pressure (approx. 55–85 kg)
-Acceptable Tooling: Standard HTG tool plates (custom options available)
-Typical Applications: Indoor grinding, small projects, surface preparation
-Supplied With: Maintenance bag
